PRODUCTS FRP Tanks
FRP Pressure Vessel Tank
Mashhad Kasra FRP water treatment vessels are with FRP liner, broadly applying to residential, commercial and industrial softening and filtering systems .With perfect performance of corrosion resistant.
Specification
● Made up of high performance composite material with filament wound with vinyl ester resin. 100% corrosion resistant.
● Inner Shell material FRP
● Full choice of pressure vessel available up to 78" diameter with 96" height
● Top & Bottom openings available for 16" through 36" tanks
● Maximum Operating Temperature 120F (49°C)
● Maximum Operating Pressure150 psi (10.5 Bar)
● Low installation and maintenance
|
No.
|
Size
|
Liner Material
|
Opening
|

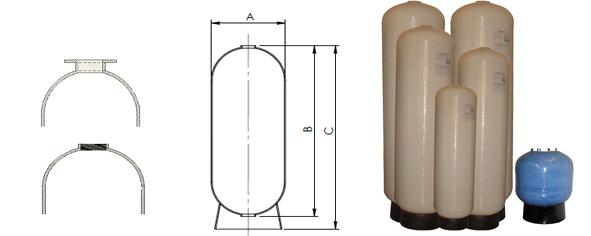

A Diameter
|
B Height Without Base
|
C Height With Base
|
Capacity
|
|
|
(In)
|
(mm)
|
|
Top
|
Bottom
|
(In)
|
(mm)
|
(In)
|
(mm)
|
(In)
|
(mm)
|
Gallons
|
Liters
|
|
1
|
06×18
|
140×455
|
FRP
|
2.5” Threaded
|
N/A
|
6
|
152
|
18
|
455
|
18.5
|
470
|
1.1
|
4.2
|
|
2
|
07×24
|
170×610
|
FRP
|
2.5”Threaded
|
N/A
|
7
|
181
|
17
|
430
|
17.2
|
437
|
2.2
|
8.5
|
|
3
|
07×35
|
170×890
|
FRP
|
2.5”Threaded
|
N/A
|
7
|
181
|
35
|
890
|
35.6
|
905
|
5.2
|
19.7
|
|
7
|
08×35
|
200×890
|
FRP
|
2.5”Threaded
|
N/A
|
8
|
206
|
35
|
890
|
35.3
|
905
|
6.6
|
25
|
|
8
|
08×44
|
200×1115
|
FRP
|
2.5”Threaded
|
N/A
|
8
|
206
|
43.9
|
1115
|
44.5
|
1130
|
8.7
|
32.9
|
|
10
|
09×35
|
220×890
|
FRP
|
2.5”Threaded
|
N/A
|
9
|
232
|
35
|
890
|
35.6
|
905
|
8.3
|
31.4
|
|
11
|
09×40
|
220×1005
|
FRP
|
2.5”Threaded
|
N/A
|
9
|
232
|
42
|
1005
|
40.2
|
1020
|
9.5
|
36
|
|
12
|
09×48
|
220×1219
|
FRP
|
2.5”Threaded
|
N/A
|
9
|
232
|
48
|
1219
|
48.5
|
1225
|
12.7
|
48
|
|
13
|
10×17
|
240×430
|
FRP
|
2.5”Threaded
|
N/A
|
10
|
257
|
17
|
430
|
17.6
|
445
|
4.8
|
18.2
|
|
14
|
10×35
|
240×890
|
FRP
|
2.5”Threaded
|
N/A
|
10
|
257
|
35
|
890
|
35.6
|
905
|
10.2
|
38.6
|
|
15
|
10×44
|
240×1115
|
FRP
|
2.5”Threaded
|
N/A
|
10
|
257
|
43.9
|
1115
|
44.5
|
1130
|
13.1
|
49.6
|
|
16
|
10×54
|
240×1370
|
FRP
|
2.5”Threaded
|
N/A
|
10
|
257
|
54.1
|
1375
|
54.7
|
1390
|
16.4
|
62
|
|
18
|
12×52
|
300×1320
|
FRP
|
2.5”Threaded
|
N/A
|
12
|
308
|
52
|
1320
|
52.8
|
1340
|
22.2
|
84
|
|
21
|
13×54
|
330×1370
|
FRP
|
2.5”Threaded
|
N/A
|
13
|
334
|
54
|
1370
|
54.7
|
1390
|
27.5
|
104
|
|
22
|
14×65
|
350×1620
|
FRP
|
2.5”Threaded
|
N/A
|
14
|
360
|
65.4
|
1620
|
64.6
|
1640
|
40.6
|
154
|
|
23
|
FRP
|
4”Threaded
|
N/A
|
14
|
360
|
65.4
|
1620
|
64.6
|
1640
|
40.6
|
154
|
|
24
|
16×65
|
400×1620
|
FRP
|
2.5”Threaded
|
N/A
|
16
|
410
|
36.8
|
1620
|
64.6
|
1640
|
49
|
185
|
|
25
|
FRP
|
4”Threaded
|
N/A
|
16
|
410
|
63.8
|
1620
|
64.6
|
1640
|
49
|
185
|
|
27
|
18×65
|
450×1650
|
FRP
|
4”Threaded
|
N/A
|
18.5
|
470
|
65.6
|
1665
|
74.9
|
1900
|
66.8
|
253
|
|
28
|
4”Threaded
|
4”Threaded
|
18.5
|
470
|
65.6
|
1665
|
74.9
|
1900
|
66.8
|
253
|
|
29
|
20×72
|
500×1800
|
FRP
|
4”Threaded
|
N/A
|
20.5
|
520
|
70.9
|
1800
|
80.4
|
2042
|
89
|
337
|
|
30
|
4”Threaded
|
4”Threaded
|
20.5
|
520
|
70.9
|
1800
|
80.4
|
2042
|
89
|
337
|
|
31
|
24×72
|
600×1830
|
FRP
|
4”Threaded
|
N/A
|
24.4
|
620
|
70.9
|
1800
|
80.4
|
2042
|
126.8
|
480
|
|
32
|
4”Threaded
|
4"Threaded
|
24.4
|
620
|
70.9
|
1800
|
80.4
|
2042
|
126.8
|
480
|
|
33
|
30×72
|
750×1800
|
FRP
|
4”Threaded
|
N/A
|
30.5
|
775
|
70.9
|
1800
|
80.5
|
2044
|
195.5
|
740
|
|
34
|
4”Threaded
|
4"Threaded
|
30.5
|
775
|
70.9
|
1800
|
80.5
|
2044
|
195.5
|
740
|
|
35
|
36×72
|
900×1800
|
FRP
|
4”Threaded
|
N/A
|
36.4
|
925
|
70.9
|
1800
|
84.4
|
2143
|
283
|
1071
|
|
36
|
4”Threaded
|
4"Threaded
|
36.4
|
925
|
70.9
|
1800
|
84.4
|
2143
|
283
|
1071
|
|
37
|
900×1940
|
6" FLG
|
6" FLG
|
36.4
|
925
|
70.9
|
1800
|
84.4
|
2143
|
283
|
1071
|
|
39
|
40x 72
|
1000x1800
|
FRP
|
6" FLG
|
6" FLG
|
40.4
|
1025
|
70.9
|
1800
|
84.6
|
2148
|
338.7
|
1282
|
|
40
|
48×72
|
1200×1800
|
FRP
|
6" FLG
|
6" FLG
|
48.2
|
1225
|
70.9
|
1800
|
82.9
|
2105
|
477.7
|
1808
|
|
40
|
48×96
|
1200×2400
|
FRP
|
6" FLG
|
6" FLG
|
48.2
|
1225
|
94.5
|
2400
|
106.1
|
2694
|
657.1
|
2487
|
|
41
|
60X96
|
1500x2400
|
FRP
|
6" FLG
|
6" FLG
|
60.2
|
1530
|
94.5
|
2400
|
104.4
|
2651
|
958
|
3626
|
